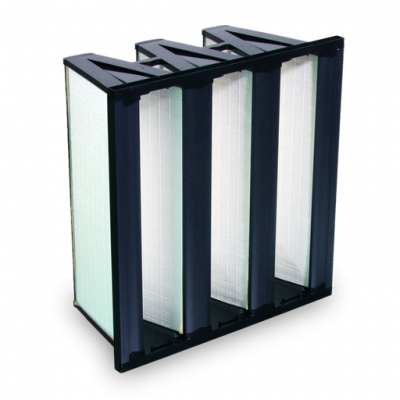

Energy saving V-Form Rigid compact filter used in HVAC, Ventilation and turbomachinery such as turbines.
High performance compact filters are available in three filter classes.
Airflow volumes up to 5000 [m³/h] with only 292[mm] installment depth required.
HS-Mikro Pak filters are mostly used at air conditioning, ventilation and turbine applications for fine dust filtration. These filters are used as primary and/or main filters to prevent toxic gas, aerosol and general dust pollution. They are especially suited for for handling large airflow volumes and achieve long service life times due to their large dust storage capacity.HS-Mikro Pak filters fit most standard supporting frames from various manufacturers. The filtermedia consits of high quality glass fibre paper with varying efficiencies. Thermoplastic spacers between tightly packed individual filter folds, ensure even spacing. The supporting frame is made form plastic and therefore makes disposal easy because the complete filter could be reduced to ash, once burned.
The design and construction of the HS-Mikro Pak provides a high rigidity and corrosion is impossible. The filter media is water resistant and also suitable for use in conditions with high humidity. A temporary increase in the of the pressure drop is normal. With reduced humidity the pressure drop returns to normal levels.
HS-Mikro Pak filters can be fitted with the clean-air or dust side and are great space savers when used in new systems due to their minimal mounting depths. Options like foamed gasktes or burst protection gills on the clean air side are possible - please ask for special applications.
Datasheet
